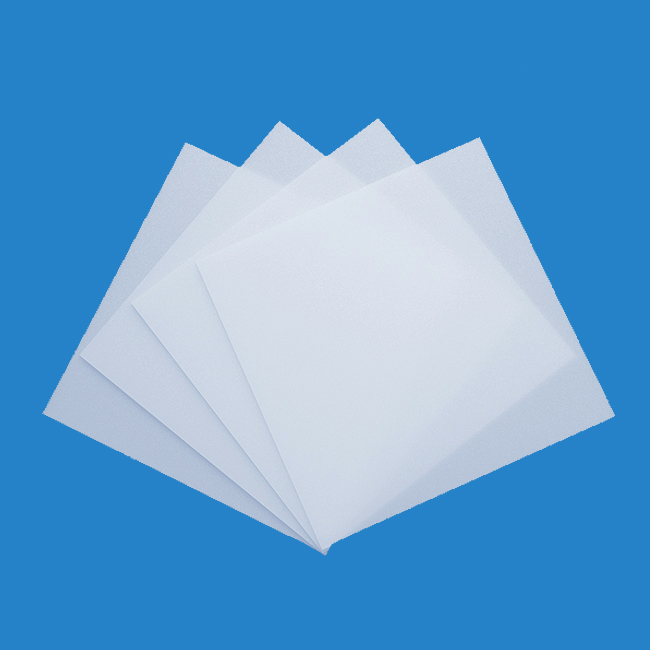

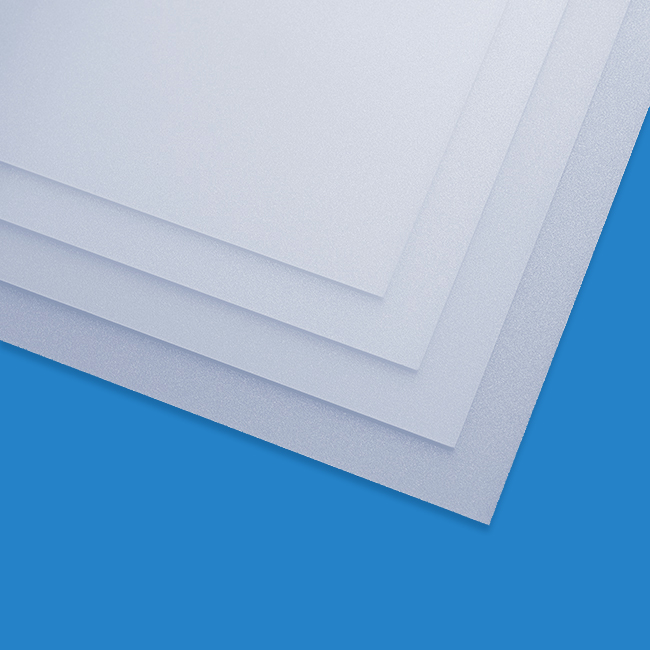

Nano PP Diffuser Plate

Product Specification

Product Series

Thickness

Size Range

Transmittance

Haze

Nano PP Diffuser Plate
Model:PPKS

0.6-3.0mm

1300mm*2440mm

（Customizable）

40-65

89-93

Specification

Rotine Testing
Property	Test Method	Test Condition	Unit	Test data
Thickness	Standard value±5%	Micrometer 0.01mm Precision	mm	1.19

Mechanical Property
Property	Test Method	Test Condition	Unit	Test data
Tensile Strength	ISO527	50mm/min	MPa	22.6
Tear Trength	ISO527	50mm/min	MPa	20.1


Physical Property
Property	Test Method	Test Condition	Unit	Test data
Proportion	ISO1183	25℃	g/cm³	1.05
UV Ressistance	UVA	315-400nm/12h	240H	UVA Treated OK
High and low temperature test	GB/T 2423.1-2001	(-30℃/4h~+80℃/4h)	100 cycles	Qualified OK


Thermal Property
Property	Test Method	Test Condition	Unit	Test data
Vicat Softening Temperature	ISO306	120℃/hr 50N	℃	77.9
Heat Distortion Temp	ISO75	0.45 MPa	℃	93.8
Fire rating	UL94	2.5mm	class	V2


Optical Property
Property	Test Method	Test Condition	Unit	Test data
Transmittance	GB2410-80	SHENGUANG WGT-S Light Transmittance/Haze Meter	%	61.2
Haze	GB2410-80	SHENGUANG WGT-S Light Transmittance/Haze Meter	%	91.7


Envionmental Protection and Safety
Property	Test Method	Test Condition	Unit	Test data
RoHS	Directive 2011/65/EU (RoHS)	ICP-OES&UV-Vis& GC-MS	— —	Pass
SVHC	Regulation (EC) No 1907/2006 (REACH)	SGS-CCL-TOP-092-01 SGS-CCL-TOP-092-02	— —	Pass
GWEPT	IEC 60695-2-11:2021	The Time of Application tAPP: 30s (The test specimen and the specified layer placed underneath the test specimen does not ignite.)	℃	750

NOTE:
The above data are representative actual measurement data obtained through standard test methods, but not guaranteed values (the shipping standard values of key data are subject to internal tolerance or negotiated tolerance).

Product Utilization

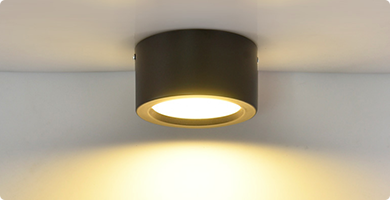

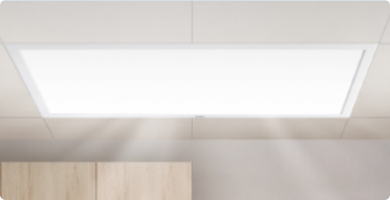

The product uses nano-modification technology to change the molecular structure of PP and add nano-sized light diffuser agents, transforming point or line light source into soft and uniform surface light source. Nano PP material has good environmental performance, high resilience, strong yellowing resistance and flame retardant V2 rating.

References Download

Glow Wire Test.pdf

REACH.pdf

RoHS.pdf
