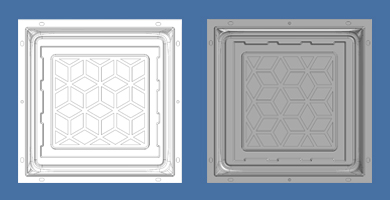

Nano PP Multifunctional Composite Plate
Product Parameters
|
Product Specification
Specification
|
|||||||||||
|
Property |
Test Method |
Unit |
Test data |
||||||||
| Tensile Strength |
ISO527 |
MPa |
19.9 |
||||||||
| Tear Trength |
ISO527 |
MPa |
16.3 | ||||||||
| Proportion |
ISO1183 |
g/cm3 |
1.05 |
||||||||
| UV Resistance |
UVA 315-400nm |
240H |
UVA Treated OK |
||||||||
|
High and low temperature test |
GB/T 2423.1-2001 |
100 cycles |
Qualified OK (-30℃-+80℃) |
||||||||
|
Vicat Softening Temperature |
ISO306 |
℃ |
124.5 |
||||||||
| Heat Distortion Temp |
ISO75 |
℃ |
104.7 |
||||||||
| Fire rating |
UL94 |
class |
V2 |
||||||||
| Reflectivity |
GB2410-80 |
% |
93.4 |
||||||||
| RoHS |
Directive 2011/65/EU (RoHs) |
— — |
Pass |
||||||||
| SVHC |
Regulation (EC) No 1907/2006 (REACH) |
— — |
Pass |
||||||||
| GWEPT |
IEC 60695-2-11:2021 |
℃ |
750 |
||||||||
|
|
|
|
|
||||||||
NOTE:
The above data are representative actual measurement data obtained through standard test methods, but not guaranteed values (the shipping standard values of key data are subject to internal tolerance or negotiated tolerance).
Product Utilization
This new patented lamp base plate product has good environmental performance, strong weathering resistance, and high and low temperature resistance. Its light reflective surface has good yellowing resistance, and does not rust. The features of flame retardant V2 rating and electrical insulation performance ensure the safety of the product. Its strong resilience and high reflectivity improve the luminous effect of a whole lamp and make a lamp last longer.
