PC Anti-glare Diffuser Plate

Product Video

 Product Parameters

NOTE:
The above data are representative actual measurement data obtained through standard test methods, but not guaranteed values (the shipping standard values of key data are subject to internal tolerance or negotiated tolerance).

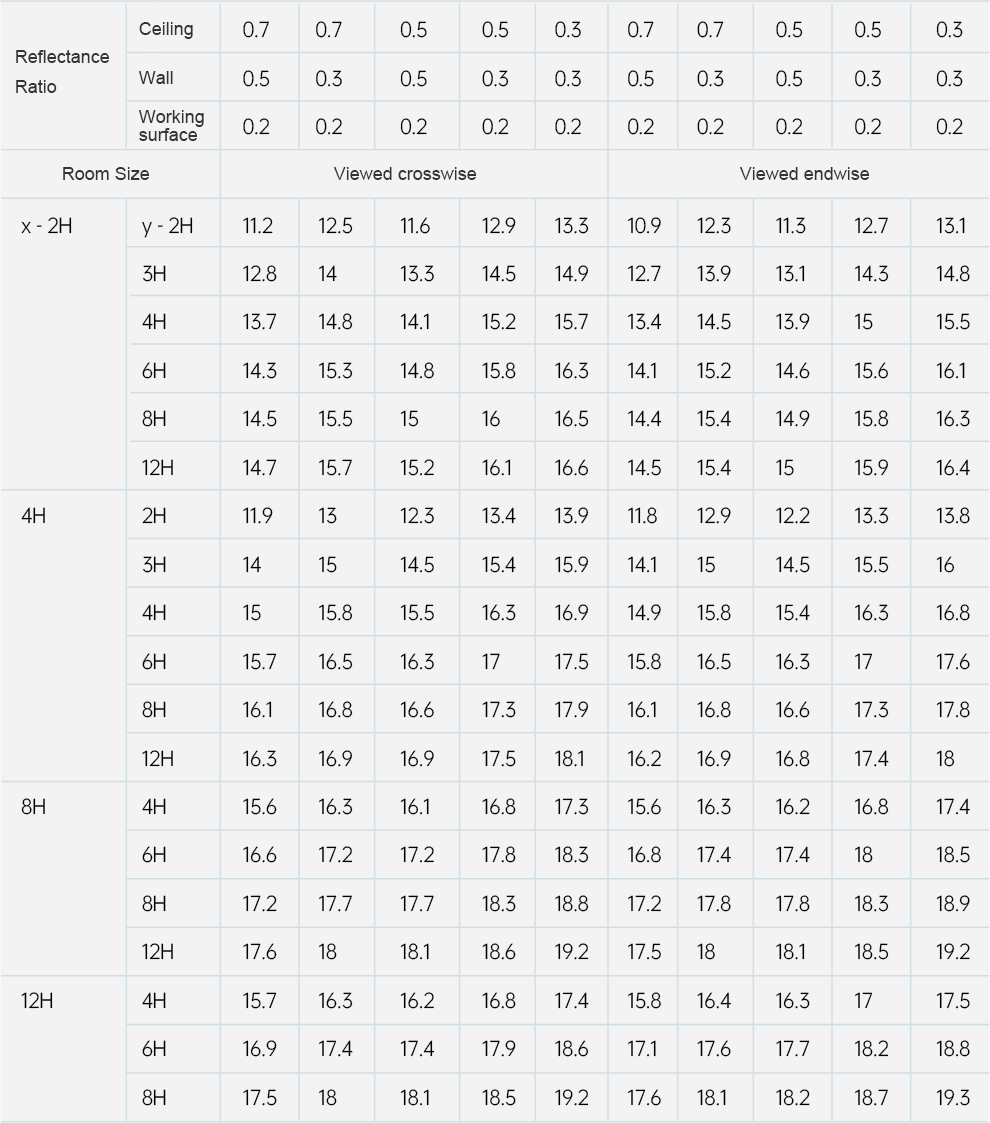

PC Anti-Glare Panel UGR(Unified Glare Rating) Data Test Table

Glare evaluation based on luminous intensity distribution and ideal simulated environment. Light output area: 0.36 m2
出光口面积：0.36 m2
C angle range: 0 degrees - 360 degrees
C angle interval: 22.5 degrees
Testing speed: fast
Ambient temperature: 25.3P
Test date:
Y angle range: 0 degrees-180 degrees
Y angle interval: 1.0 degree
Test system：Everfine G0-2000B_V1 System V2.00.429
Ambient humidity: 65.0%
Test distance: 8.270m [K-1.0000]

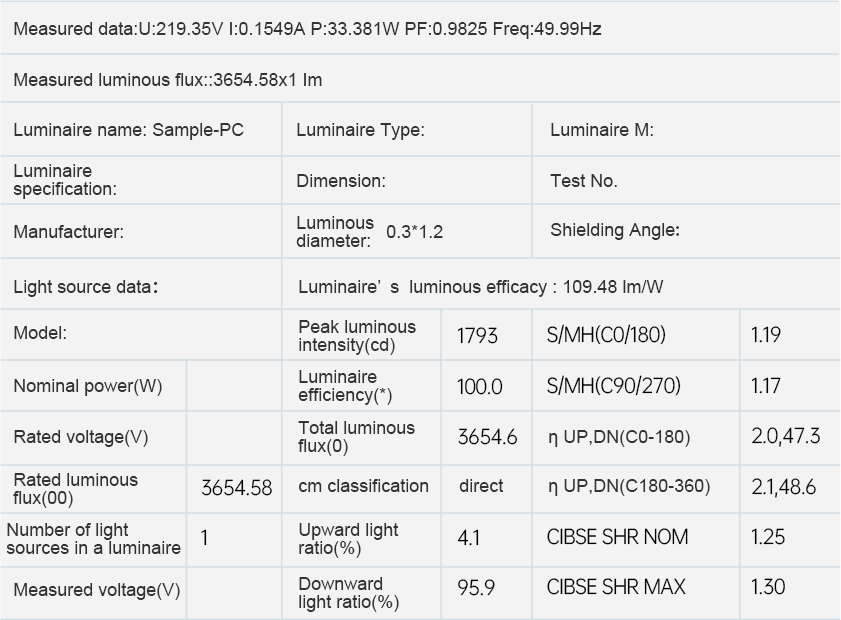

Indoor Luminaire Luminous Data

C angle range: 0 degrees - 360 degrees
C angle interval: 22.5 degrees
Testing speed: fast
Ambient temperature: 25.3P
Test date:
Y angle range: 0 degrees-180 degrees
Y angle interval: 1.0 degree
Test system：Everfine G0-2000B_V1 System V2.00.429
Ambient humidity: 65.0%
Test distance: 8.270m [K-1.0000]

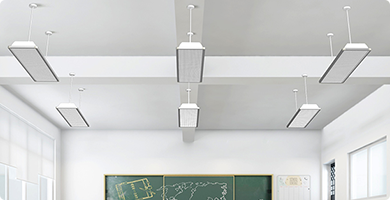

Product Utilization

This new patented product uses composite technology to combine diffuser film and anti-glare plates.
It adopts an optical prism structure, and is a concave hexagon with a conical bottom.
The product makes light soft and non-dazzling, meeting the national education lighting standards and US and EU lighting standards.
