PS Diffuser Plate

PS Diffuser Plate

Product Parameters

Product Specification

Product Series
PS Diffuser Plat
Model
PSKS
Thickness
0.6-3.0mm
Transmittance
40-65
Haze
89-93
Size Range
1300*2440mm(Customizable)

Specification

Property
Test Method
Unit
Test data
Tensile Strength ISO527
MPa
22.3
Tear Trength ISO527
MPa
22.4
Proportion ISO1183
g/cm3
 1.05
UV Resistance UVA
315-400nm
240H
UVA Treated
OK
High and low temperature test
GB/T
2423.1-2001
100 cycles
Qualified OK
(-30℃-+80℃)
Vicat
Softening
Temperature
ISO306

97.9
Heat Distortion Temp ISO75

83.8
Fire rating UL94
class

FH-4

Transmittance GB2410-80
%
73.9
Haze GB2410-80
%
90.4




NOTE:

The above data are representative actual measurement data obtained through standard test methods, but not guaranteed values (the shipping standard values of key data are subject to internal tolerance or negotiated tolerance).


Product Utilization

It has the characteristics of high light transmittance,
high haze and yellowing resistance Achieve comfortable lighting effect.

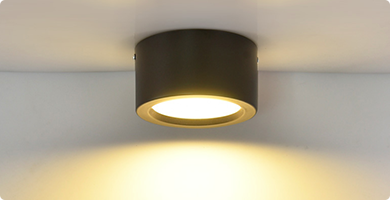

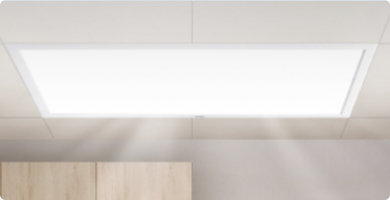

Suitable for all kinds of lamps and light boxes.
High cost performance.
