Product Parameters
Product Specification
Specification
|
|||||||||||||||
Property |
Test Method |
Unit |
Test data |
||||||||||||
Tensile Strength |
ISO527 |
MPa |
22.9 |
||||||||||||
Tear Trength |
ISO527 |
MPa |
21.6 | ||||||||||||
Proportion |
ISO1183 |
g/cm3 |
1.0 |
||||||||||||
UV Resistance |
UVA 315-400nm |
240H |
UVA Treated OK |
||||||||||||
High and low temperature test |
GB/T 2423.1-2001 |
100 cycles |
Qualified OK (-30℃-+80℃) |
||||||||||||
Vicat Softening Temperature |
ISO306 |
℃ |
94.4 |
||||||||||||
Heat Distortion Temp |
ISO75 |
℃ |
80.8 |
||||||||||||
Fire rating |
UL94 |
class |
FH-4 |
||||||||||||
Transmittance |
GB2410-80 |
% |
79.2 |
||||||||||||
Haze |
GB2410-80 |
% |
89.3 |
||||||||||||
UGR |
IES |
— — |
≤19 |
||||||||||||
|
|
|
|
NOTE:
The above data are representative actual measurement data obtained through standard test methods, but not guaranteed values
(the shipping standard values of key data are subject to internal tolerance or negotiated tolerance).
PC Anti-Glare Panel UGR(Unified Glare Rating) Data Test Table
Glare evaluation based on luminous intensity distribution and ideal simulated environment. Light output area: 0.36 m2
出光口面积:0.36 m2
C angle range: 0 degrees - 360 degrees
C angle interval: 22.5 degrees
Testing speed: fast
Ambient temperature: 25.3P
Test date:
Y angle range: 0 degrees-180 degrees
Y angle interval: 1.0 degree
Test system:Everfine G0-2000B_V1 System V2.00.429
Ambient humidity: 65.0%
Test distance: 8.270m [K-1.0000]
Indoor Luminaire Luminous Data
C angle range: 0 degrees - 360 degrees
C angle interval: 22.5 degrees
Testing speed: fast
Ambient temperature: 25.3P
Test date:
Y angle range: 0 degrees-180 degrees
Y angle interval: 1.0 degree
Test system:Everfine G0-2000B_V1 System V2.00.429
Ambient humidity: 65.0%
Test distance: 8.270m [K-1.0000]
Product Utilization
Optical pyramid structure design.
Reduce the discomfort of glare through structural refraction.

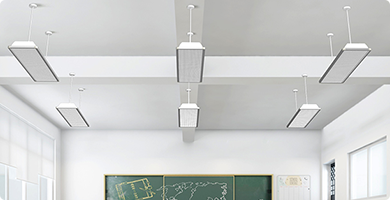

It can be applied to teaching lighting.
High cost performance.
