Product Parameters
Product Specification
Specification
|
|||||||||||||
Property |
Test Method |
Unit |
Test data |
||||||||||
Tensile Strength |
ISO527 |
MPa |
23.8 |
||||||||||
Tear Trength |
ISO527 |
MPa |
21.9 | ||||||||||
Proportion |
ISO1183 |
g/cm3 |
1.2 |
||||||||||
UV Resistance |
UVA 315-400nm |
240H |
UVA Treated OK |
||||||||||
High and low temperature test |
GB/T 2423.1-2001 |
100 cycles |
Qualified OK (-30℃-+80℃) |
||||||||||
Vicat Softening Temperature |
ISO306 |
℃ |
140.1 |
||||||||||
Heat Distortion Temp |
ISO75 |
℃ |
109.2 |
||||||||||
Fire Rating |
UL94 |
class |
V0 |
||||||||||
RoHS |
Directive 2011/65/EU (RoHs) |
— — |
Pass |
||||||||||
SVHC |
Regulation (EC) No 1907/2006 (REACH) |
— — |
Pass |
||||||||||
GWEPT |
IEC 60695-2-11:2021 |
℃ |
750 |
||||||||||
|
|
|
|
NOTE:
The above data are representative actual measurement data obtained through standard test methods, but not guaranteed values
(the shipping standard values of key data are subject to internal tolerance or negotiated tolerance).
Product Utilization
PC Flame Resistant Sheet has the characteristics of
heat insulation and impact resistance. The flame retardant grade reaches V0,
which is suitable for insulation

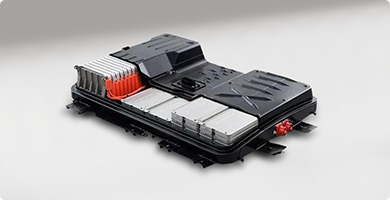

and flame retardant materials of new energy vehicle batteries
and various electronic devices.
