PC Transparent Sheet
Product Parameters
|
Product Specification
Specification
|
|||||||||||||
|
Property |
Test Method |
Unit |
Test data |
||||||||||
| Tensile Strength |
ISO527 |
MPa |
18.7 |
||||||||||
| Tear Trength |
ISO527 |
MPa |
17.8 | ||||||||||
| Proportion |
ISO1183 |
g/cm3 |
1.2 |
||||||||||
| UV Resistance |
UVA 315-400nm |
240H |
UVA Treated OK |
||||||||||
|
High and low temperature test |
GB/T 2423.1-2001 |
100 cycles |
Qualified OK (-30℃-+80℃) |
||||||||||
|
Vicat Softening Temperature |
ISO306 |
℃ |
148.1 |
||||||||||
| Heat Distortion Temp |
ISO75 |
℃ |
108.1 |
||||||||||
| Fire rating |
UL94 |
class |
V2 |
||||||||||
| Transmittance |
GB2410-80 |
% |
91.4 |
||||||||||
| Haze |
GB2410-80 |
% |
0.2 |
||||||||||
| RoHS |
Directive 2011/65/EU (RoHs) |
— — |
Pass |
||||||||||
| SVHC |
Regulation (EC) No 1907/2006 (REACH) |
— — |
Pass |
||||||||||
| GWEPT |
IEC 60695-2-11:2021 |
℃ |
750 |
||||||||||
|
|
|
|
|
||||||||||
NOTE:
The above data are representative actual measurement data obtained through standard test methods, but not guaranteed values (the shipping standard values of key data are subject to internal tolerance or negotiated tolerance).
Product Utilization

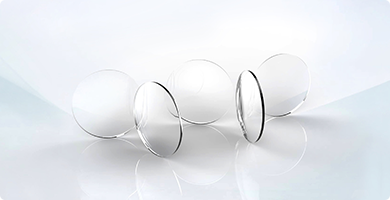

PC Transparent Sheet has the characteristics
of high transmittance, low light loss, heat insulation,
yellowing resistance and impact resistance,
which is suitable for making light source protection,
product packaging and optical lens.
