PC Reflector Sheet
Product Parameters
|
Product Specification
Specification
|
|||||||||||||
|
Property |
Test Method |
Unit |
Test data |
||||||||||
| Tensile Strength |
ISO527 |
MPa |
16.3 |
||||||||||
| Tear Trength |
ISO527 |
MPa |
14.2 | ||||||||||
| Proportion |
ISO1183 |
g/cm3 |
1.2 |
||||||||||
| UV Resistance |
UVA 315-400nm |
240H |
UVA Treated OK |
||||||||||
|
High and low temperature test |
GB/T 2423.1-2001 |
100 cycles |
Qualified OK (-30℃-+80℃) |
||||||||||
|
Vicat Softening Temperature |
ISO306 |
℃ |
139.6 |
||||||||||
| Heat Distortion Temp |
ISO75 |
℃ |
72.4 |
||||||||||
| Fire rating |
UL94 |
class |
V2 |
||||||||||
| Reflectivity |
GB2410-80 |
% |
95.1 |
||||||||||
| RoHS |
Directive 2011/65/EU (RoHs) |
— — |
Pass |
||||||||||
| SVHC |
Regulation (EC) No 1907/2006 (REACH) |
— — |
Pass |
||||||||||
| GWEPT |
IEC 60695-2-11:2021 |
℃ |
750 |
||||||||||
|
|
|
|
|
||||||||||
NOTE:
The above data are representative actual measurement data obtained through standard test methods, but not guaranteed values
(the shipping standard values of key data are subject to internal tolerance or negotiated tolerance).
Product Utilization

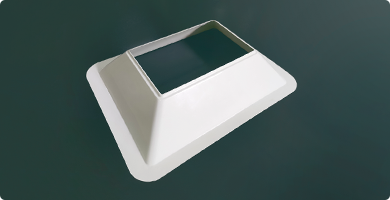

PC Reflector Sheet has the characteristics of
high reflectivity, low light loss,
yellowing resistance and shock resistance,
which is suitable for making various plastic lamp bowls
and light source reflection of all kinds of lighting appliances.
