PC Diffuser Plate
Product Parameters
|
Product Specification
Specification
|
|||||||||||||||
|
Property |
Test Method |
Unit |
Test data |
||||||||||||
| Tensile Strength |
ISO527 |
MPa |
34.8 |
||||||||||||
| Tear Trength |
ISO527 |
MPa |
25.1 | ||||||||||||
| Proportion |
ISO1183 |
g/cm3 |
1.2 |
||||||||||||
| UV Resistance |
UVA 315-400nm |
240H |
UVA Treated OK |
||||||||||||
|
High and low temperature test |
GB/T 2423.1-2001 |
100 cycles |
Qualified OK (-30℃-+80℃) |
||||||||||||
|
Vicat Softening Temperature |
ISO306 |
℃ |
146.4 |
||||||||||||
| Heat Distortion Temp |
ISO75 |
℃ |
126.9 |
||||||||||||
| Fire rating |
UL94 |
class |
V2 |
||||||||||||
| Transmittance |
GB2410-80 |
% |
56.3 |
||||||||||||
| Haze |
GB2410-80 |
% |
91.4 |
||||||||||||
| RoHS |
Directive 2011/65/EU (RoHs) |
— — |
Pass |
||||||||||||
| SVHC |
Regulation (EC) No 1907/2006 (REACH) |
— — |
Pass |
||||||||||||
| GWEPT |
IEC 60695-2-11:2021 |
℃ |
750 |
||||||||||||
|
|
|
|
|
||||||||||||
NOTE:
The above data are representative actual measurement data obtained through standard test methods, but not guaranteed values
(the shipping standard values of key data are subject to internal tolerance or negotiated tolerance).
Product Utilization
Adopting special light diffuser material, PC diffusion plate can transform point or line light source
into soft and uniform surface light source,

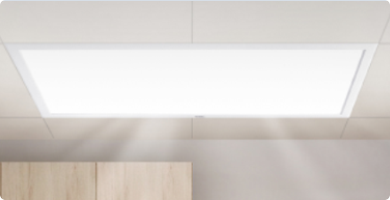

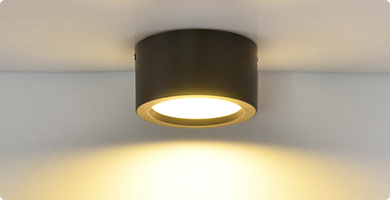

which is used in downlights and flat panel lights
with high dispersion,haze and transmittance.
